Features
• Adoption of an air type elevator unit enables the drum to be easily replaced.
• The mechanically operated safety stopper safely and reliably prevents the drum can from falling off.
• A wide range of options is available.
Specifications
| Supply air pressure (MPa) | 0.4 to 0.5 |
| Liftable weight (kg) | 80 |
| Max. raise stroke (mm) | 950 |
| Total unit weight (kg) | 190 |
| Model | AELBP08 | AELBP10 | AELBP20 | AELBP40 |
| Discharge quantity (cm3/min(50/60Hz)) |
75/90 | 100/120 | 158/190 | 316/380 |
| Max. discharge quantity (MPa) |
21 | |||
| Safety valve pressure (MPa) |
25 | |||
| Motor specifications | 0.2 kW, speed reduction ratio 1/59 |
0.2 kW, speed reduction ratio 1/43 |
0.4 kW, speed reduction ratio 1/21 |
|
| Grease used | NLGI No.0 to 2 (Note, however, that the consistency shall be 240 or more at the operating temperature.) |
|||
| Accessories | with follower plate, with low level switch, with drum can access door |
|||
| Weight (kg) | Approx. 195 | |||
| Number of lubricating ports |
200 | 300 | 600 | 800 |

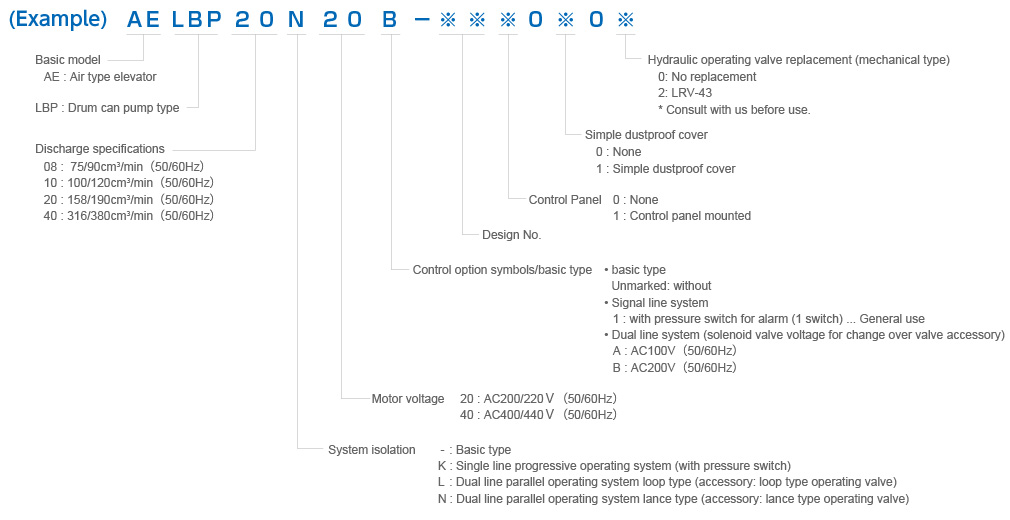

Explanation of Model Symbols
